MT LED LIGHTING TOWER

1500 rpm – 50 Hz – cos ϕ 0,8 – 220V – 240V        |       1800 rpm – 60 Hz – cos ϕ 0,8    |      1800 rpm – 48V

> MINING TOWER LED

STANDARD EQUIPMENT

• Hydraulic mast made of galvanized steel
• Maximum height 9 m
• Rotation 350°
• Fast and automatic deployment with safety system
• 140 litres fuel tank
• Noise level 60 dB(A)
• Liquids bunding
• 4 deploying stabilizers

>ENGINE

MODELNUMBER OF HEADSW PER LAMPTOTAL WCURRENTVOLTAGE V50 HZ60 HZTANK lDIMENSIONS cmMAXIMUM SIZE cmWEIGHT kgSTANDARD PANEL
MODELNUMBER OF HEADSW PER LAMPTOTAL WCURRENTVOLTAGE V

50 Hz

60 Hz

Enginecm3kWmkWmfuel consumption (l/h)fuel consumption (l/h) AspirationTANK (l)DIMENSIONS (cm)MAXIMUM SIZE (cm)WEIGHTSTANDARD PANEL
kVA LTPkVA PRPkVA LTPkVA PRP1500 rpm1800 rpm1500 rpm*1800 rpm*LWHLWH

MT MINING TOWER LED

SINGLE -PHASE

MT 9810 PK**8+2 330+250 W3140 WAC230 V8,881211PERKINS 403D-11G11318,410,31,31,3 N2502441902254192379202000MCP 120-80
MT 9810 KL**8+2 330+250 W3140 WAC230 V8,67,69,59KOHLER KDW 100310287,69,11,41,3 N2502441902254192379202000MCP 120-80

*Consumption is calculated with all the lights turned on at the same time

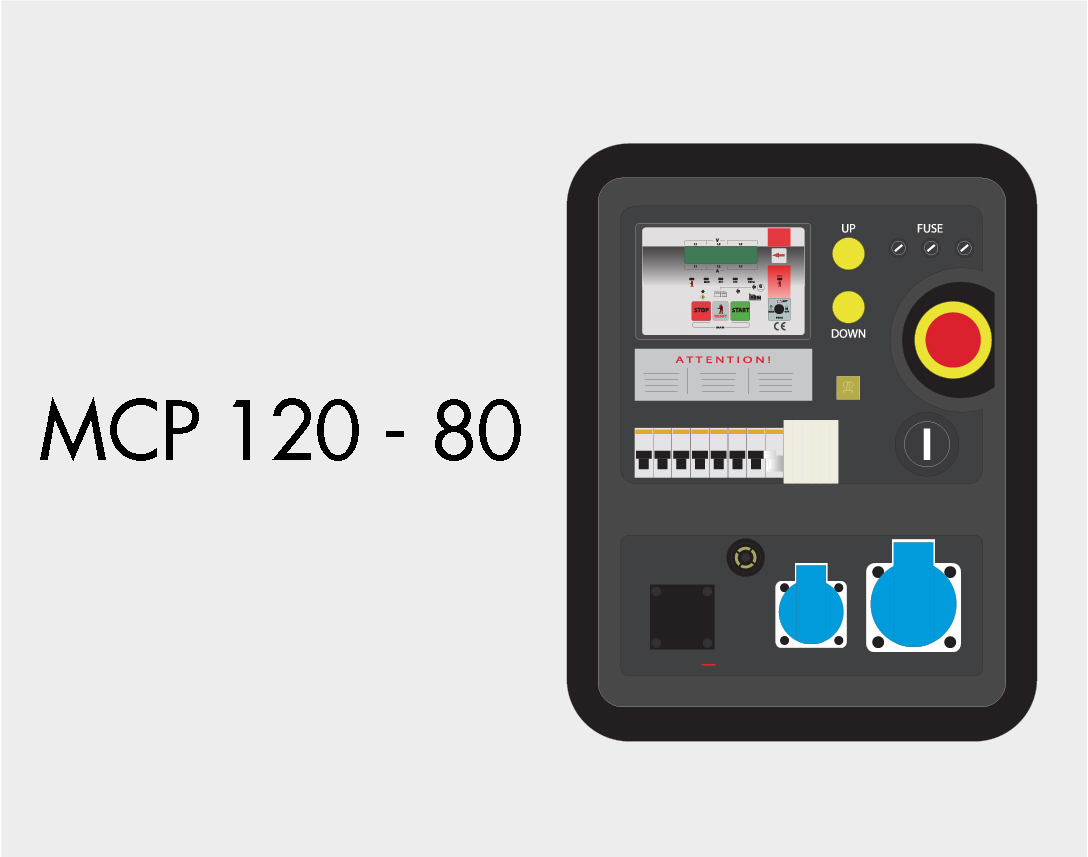

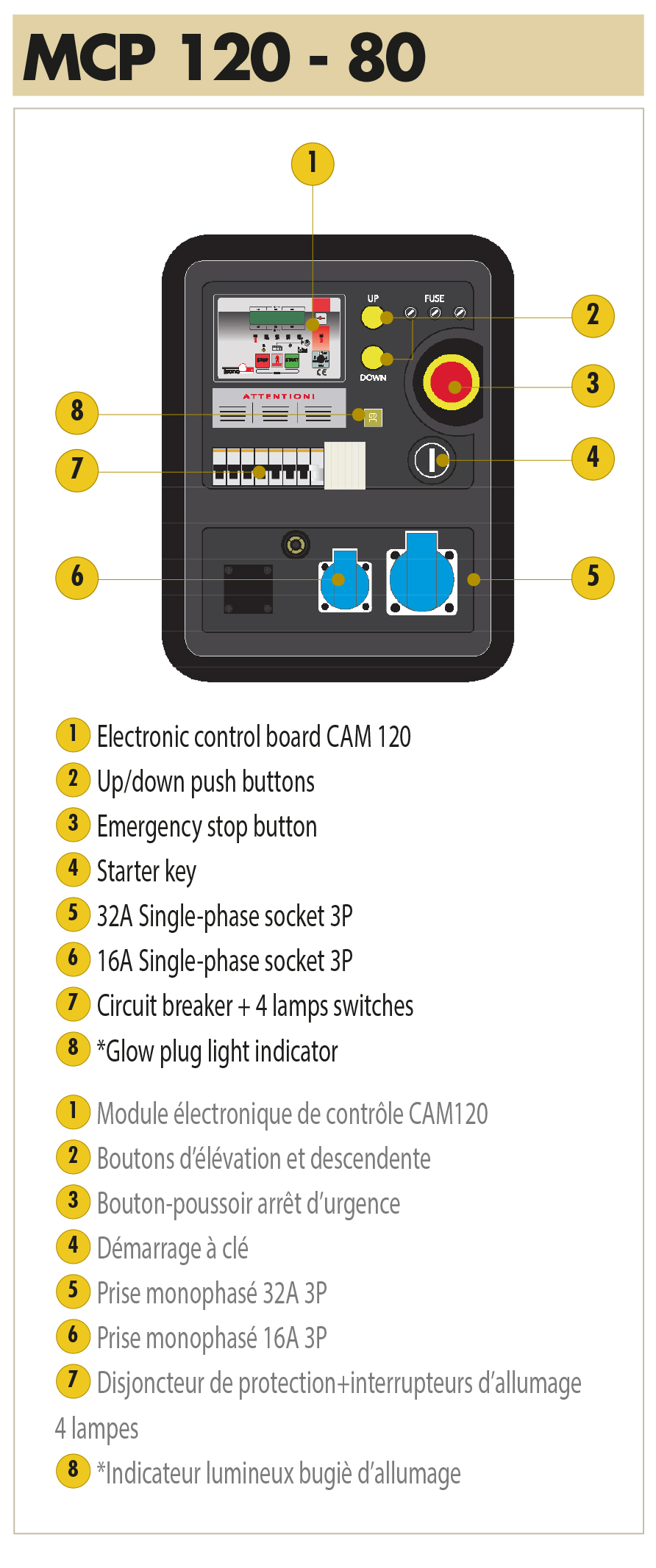

> CONTROL PANEL
