1500 rpm 50 Hz – cos ϕ 0,8 230V-400/230V 1800 rpm 60 Hz – cos ϕ 0,8 voltage on request

ULTRASILENT

> ALTERNATORS

STANDARD EQUIPMENT

• Lifting eye
• Fully bunded fuel tank
• Integrated fuel tank
• Cooling system with electric fans controlled by Inverter
• Air filter
• Manual control panel with circuit breaker
• Distribution panel with output sockets standard up to 30 A
• 12/24V battery
• Ultra-silent canopy
• Forklift guides

DIESEL Water Cooled

ULTRASILENT-CUMMINS

ENERMAX-CUMMINS										ninja_column		ninja		Fuel saving		Fuel						AdBlue tank l
MODEL	kVA LTP	kVA PRP	kVA LTP	kVA PRP		Regulator	Cylinder	cm3	kWm 1500 rpm	kWm 1500 rpm	kWm 1800 rpm	kWm 1800 rpm	(l/h) 1500 rpm	Fuel saving	(l/h) 1800 rpm	Fuel saving	Aspiration	Standard panel	Automatic control panel	dB(A) (•) 7 m
	50 Hz			60 Hz			Engine				with Mechanical radiator	with Electric radiator	with Mechanical radiator	with Electric radiator	Cons. 70%	in 1000 hours operation	Cons. 70%	in 1000 hours operation			(option)		Tank l	AdBlue tank l	L	W	H	Kg

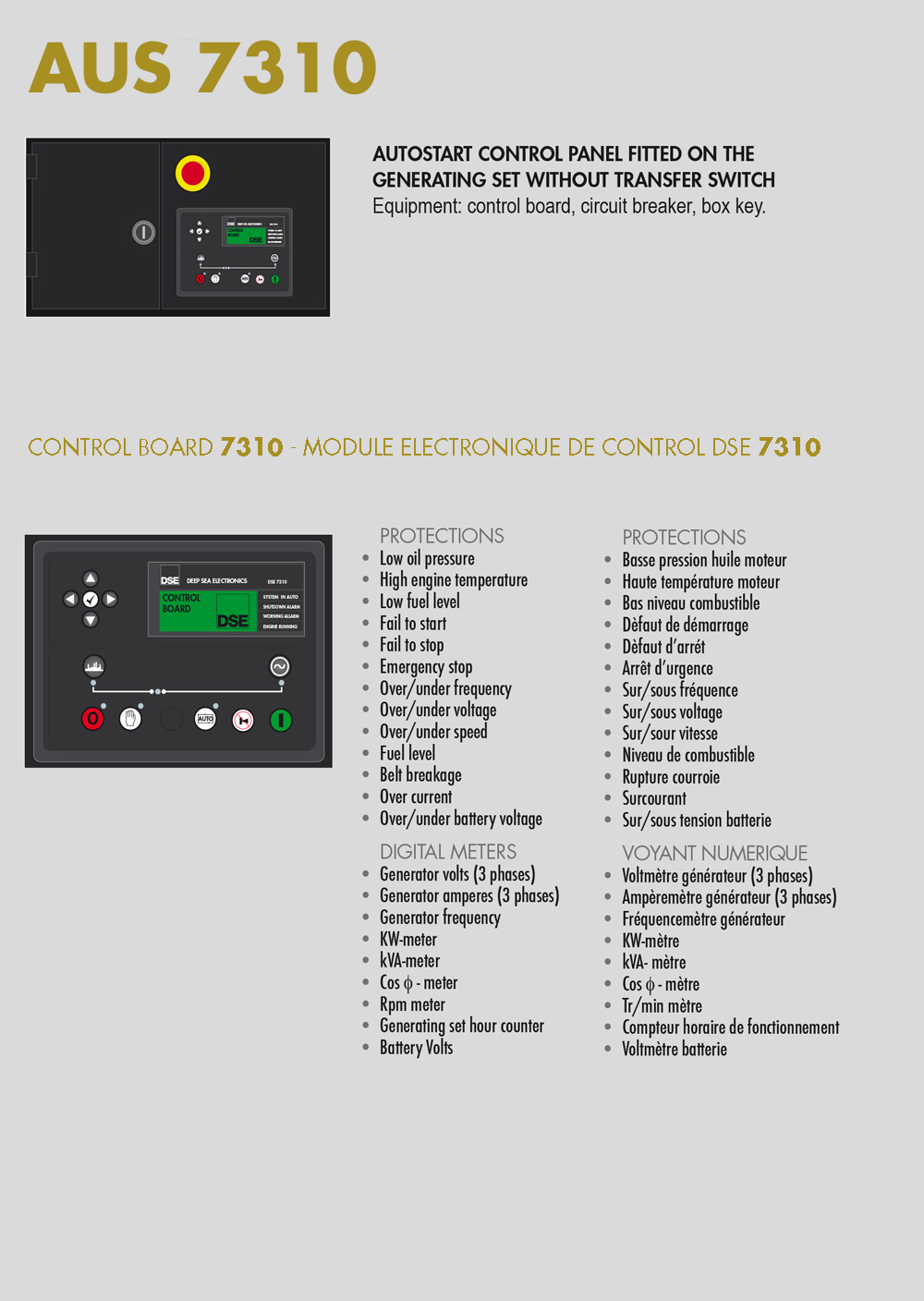

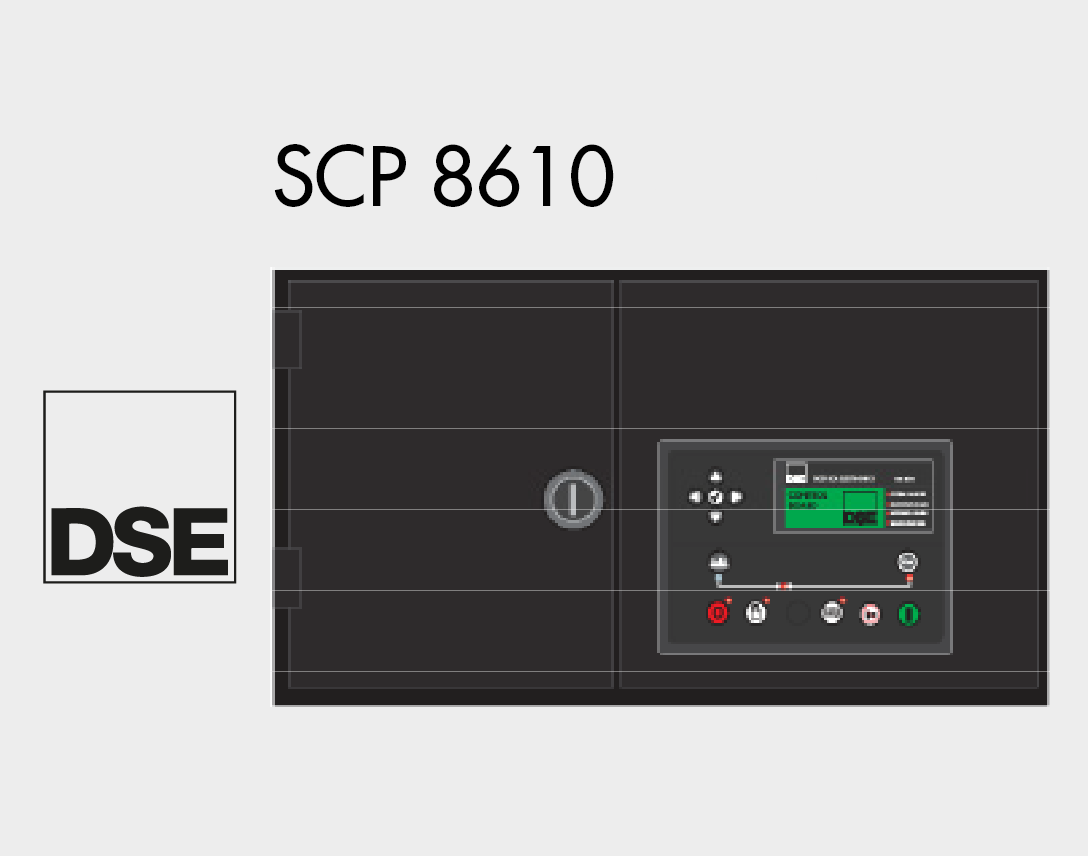

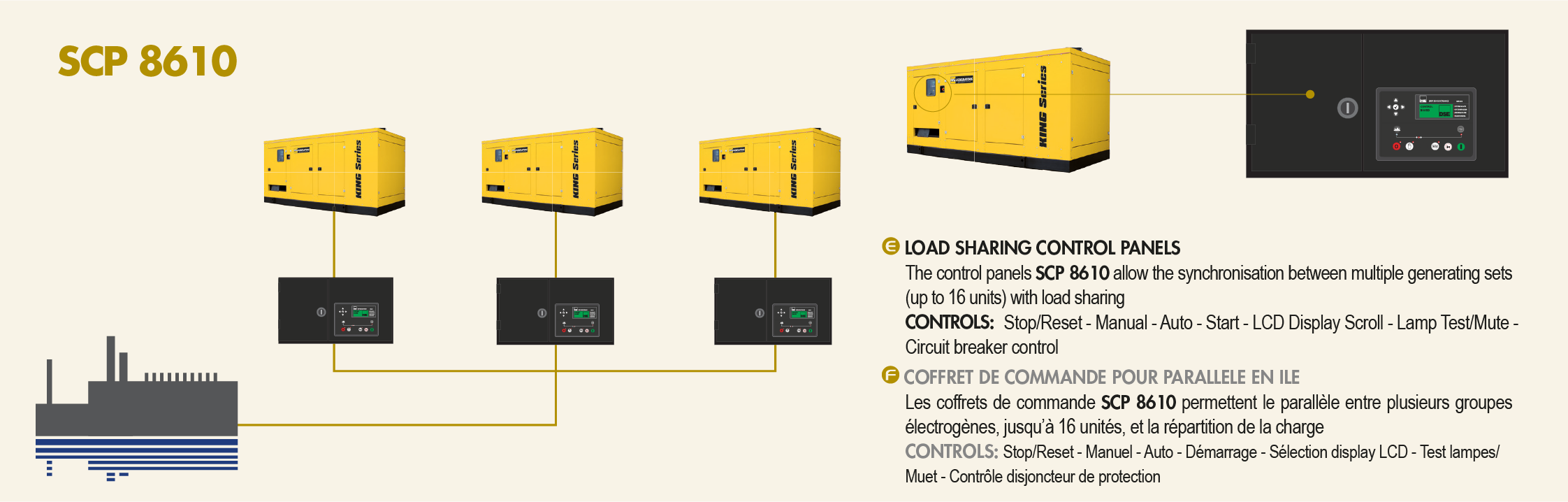

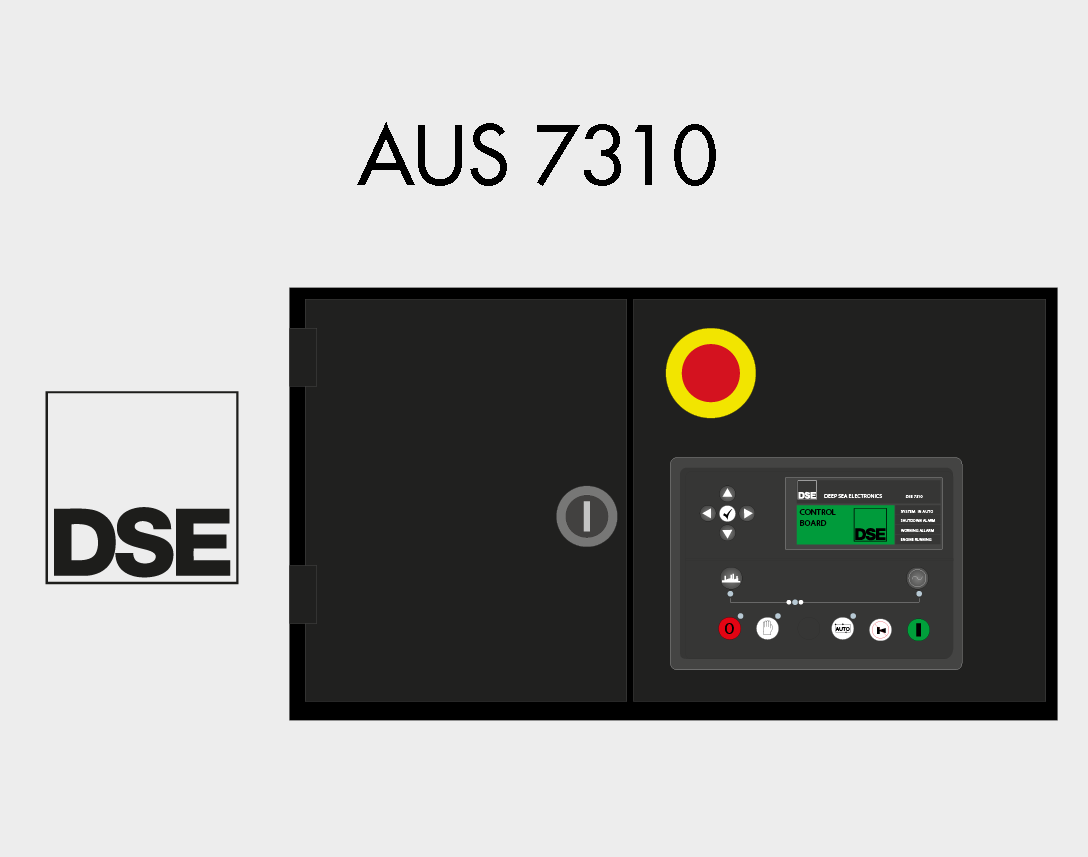

US150.5CU.t V	165	150	189	172	B6.7-G17	E	6	6700	133	140,5	152	161.5	20.8	2240	23.4	2880	T	AUS7310	SCP8610	57	730	113	390	113	226	3800
US200.5CU.t V	220	200	253	230	B6.7-G18	E	6	6700	185	192.5	202	211.5	27.7	2240	31.5	2880	T	AUS7310	SCP8610	57	730	113	390	113	226	3900
US250CU.t V	275	250	291	265	L9-G17	E	6	8900	223	233.5	228	245.5	36.6	2880	37.9	5600	T	AUS7310	SCP8610	58	800	113	450	113	227	4800
US275CU.t V	300	275	324	295	L9-G18	E	6	8900	245	255.5	252	269.5	40.0	2880	42.2	5600	T	AUS7310	SCP8610	58	800	113	450	113	227	4880
US300CU.t V	330	300	357	325	L9-G19	E	6	8900	259	269.5	279	296.5	43.4	2880	46.6	5600	T	AUS7310	SCP8610	58	800	113	450	113	227	5050
